PRODUCTS

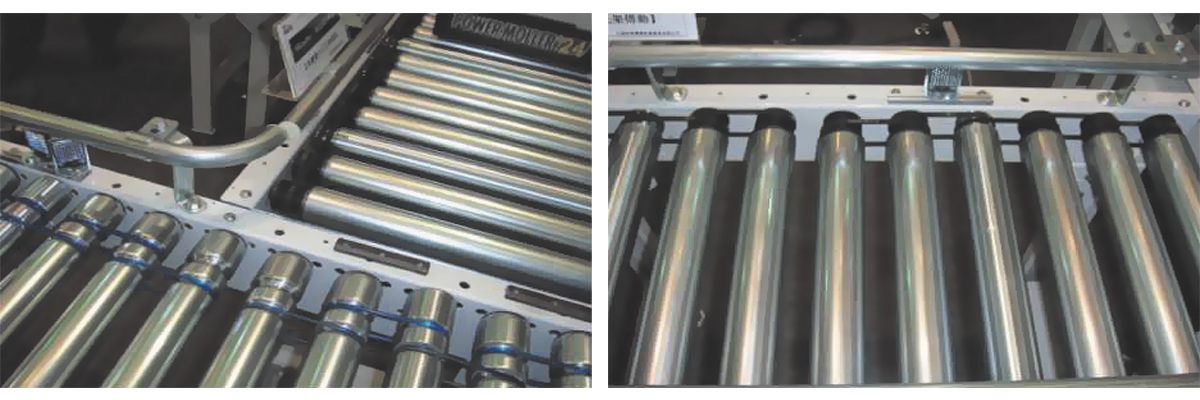

Multi wedge belt drive roller machine

Purpose:

It is applicable to the transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be placed on pallets or transported in turnover boxes.



Features:

The transmission power is large, the transmission system is compact, flexible, suitable for the transmission with small pulley diameter, and also suitable for high-speed transmission, with small vibration, less heating, and stable operation; Heat resistance, oil resistance, wear resistance, long service life.

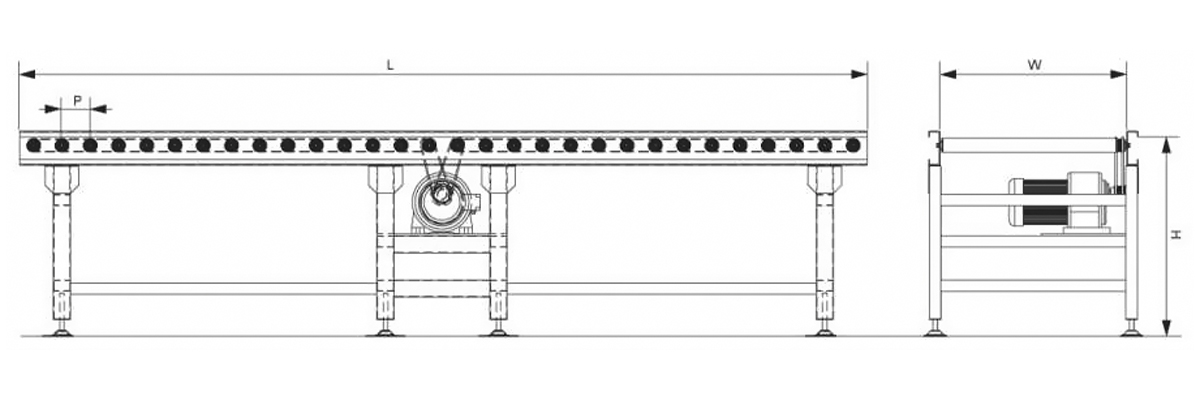

Roller diameter (d)
Φ50,Φ60
Roller spacing (P)
75,100,150
Machine length (L)
Max 8m
Effective width (W)
500,600,700, 800,900,1000,1500
Machine height (H)
500-1500
Frame profile
folded plate 120*40*15*3, aluminum profile 80*40
Outrigger profile
square tube 60*40*2, aluminum profile 40*40
Conveying speed
Max 40m/min
Motor power
0.37kw,0.55kw,0.75kw,1.5kw
