Unpowered bending machine
Purpose:
It is applicable to the turning transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be transported on pallets or turnover boxes.
Features:
The conveying material needs to be pushed manually, which can change the conveying direction of the conveying material. It has simple structure, modular design, and easy installation and maintenance.
|

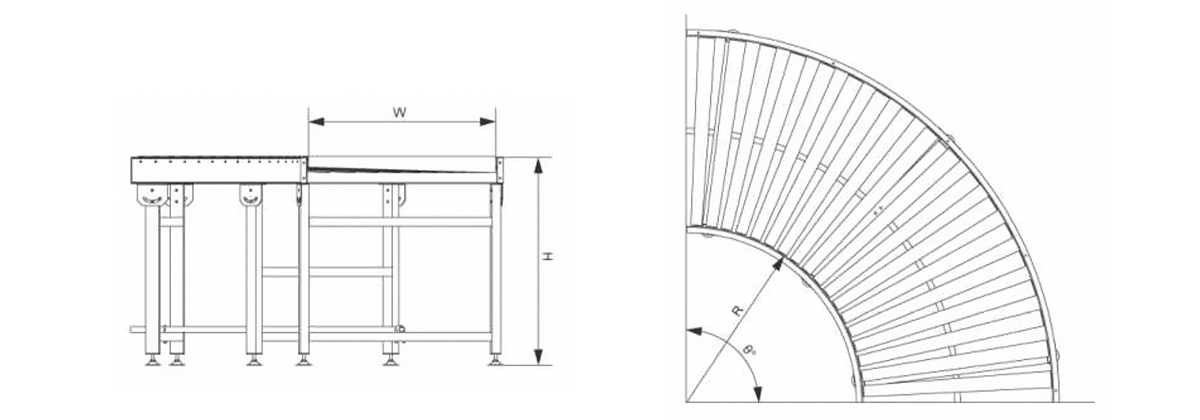

Diameter of small end of roller (d)
|
Φ50
|
|
Inner radius (R)
|
900
|
|
Turning angle (θ)
|
45°,60°, 90°
|
|
Included angle of roller (α)
|
≤6°
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
300-1500
|
|
Frame profile
|
folded plate 120*40*3
|
|
Outrigger profile
|
square tube 60*40*2
|
